PHM0M3B009

3AA / 220lm / 11h

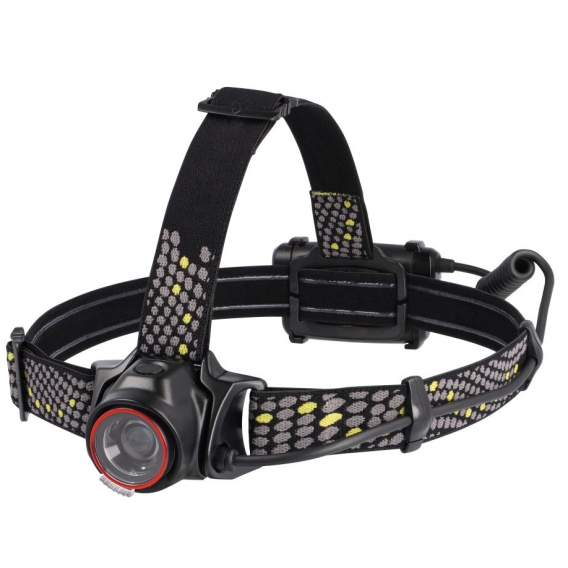

Helmet-Compatible Polymer Headlight, Sliding Diffuser for Focused or Flood Lighting


Available in 2 colours
  • free projection angle
  • sliding diffuser
Attach to Industrial or Climbing by 3M Adhesive Mounts
  • Attach to Bike Helmets by Velcro Straps
  • Red Rear Light
  • XP-G2 Cree White LED - Up to 220 Lumens
  • Additional 5mm Red LED for Night Vision
  • Sliding Diffuser for Immediate Wide Beam Light for Close Vision
  • 6 Lighting Modes satisfy Different Lighting NeedsCree LED - HIGH, MEDIUM, LOW & 2Hz FLASHINGRed LED - ON & 2Hz FLASHING
  • Red Rear Light on Battery Case for Safety Indication
  • Attach to Industrial, Climbing or Bike Helmets by 3M Adhesive Mounts, Headband Helmet Clips or by Velcro Straps [Optional]
  • Free Projection Angle
  • Water Resistant
  • Operation

    Headlight
    CREE LED OUTPUT
    HIGH > MEDIUM > LOW > 2Hz FLASHING > OFF
    [Press 3 seconds to switch to RED LED OUTPUT]
    [Press OFF if stays at any mode over 3 seconds]
    RED LED OUTPUT
    ON > 2Hz FLASHING > OFF
    [Press OFF if stays at any mode over 3 seconds]
    [Return to CREE HIGH if stays at OFF over 3 seconds]
    Rear Light
    ON > 2Hz FLASHING > OFF

  • Battery Type

    3 x 1.5V AA Alkaline Batteries [Included]

  • Bulb Type

    1 x XP-G2 Cree White LED
    1 x Ø5mm Red LED

  • Accessoies

    For Industrial or Climbing Helmet
    3M Adhesive Mount [RV0012, Order Separately]
    Headband Helmet Clips [RV0020, Order Separately]
    For Bike Helmet
    Velcro Strap [RS0022, Order Separately]

  • Size

    Headlight 35mm x 82mm x 40mm
    Battery Case 53mm x 76mm x 34mm

  • Weight

    189g [With Batteries]

ANSI
CREE HIGH 220 LUMENS 1850cd 85m 11h
CREE MED 100 LUMENS 900cd 60m 21h
CREE LOW 20 LUMENS 190cd 25m 180h
CREE 2Hz FLASHING NA NA NA 180h
RED ON 4 LUMENS 15cd 8m 120h
RED 2Hz FLASHING NA NA NA 180h
REAR LIGHT ON NA NA NA 250h
REAR LIGHT 2Hz FLASHING NA NA NA 300h
* Flashing mode specifications cannot be measured by ANSI FL1 standard.
Flashing mode runtime is based on measurement of battery capacity change only.
