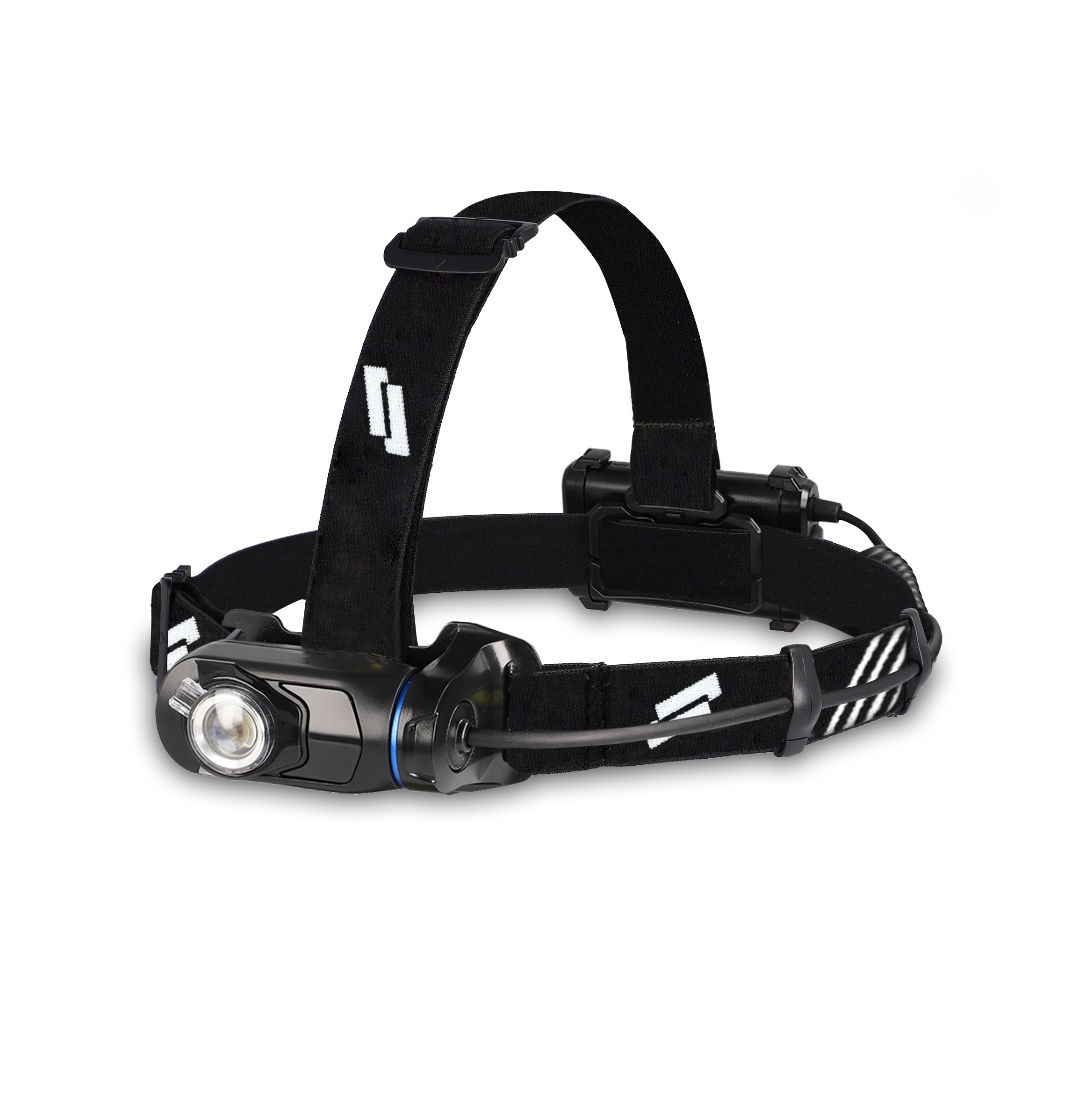

Intelligent Infrared Sensor LED Focus Control Headlight, Hands-free Operation
Headlight
MANUAL OPERATION
Press the Operation Button to cycle through lighting modes as follow.
LUXEON SENSOR MODE > LUXEON HIGH > LUXEON MED > LUXEON LOW > RED LEDs ON > RED LEDs SOS-FLASHING > OFF
[Twist the Circular Control for LUXEON LED FOCUS CONTROL]
[Press OFF if stays at any mode over 3 seconds]
LUXEON LED IR SENSOR OPERATION*
Red LED Indicator will light up to indicate the stand-by status of IR Sensor Operation Mode.
LUXEON ON > LUXEON OFF
[Wave hand in front of the IR Sensor slowly to cycle through LUXEON ON and OFF]
[Twist the Circular Control for LUXEON LED FOCUS CONTROL]
[Press the Operation Button to switch off headlight completely after use]
*IR does not work with black rubber materials
Rear Light
ON > 2Hz FLASHING > OFF
3 x 1.5V AA Alkaline Batteries [Included]
1 x Luxeon T White LED
2 x Ø3mm Red LEDs
Headlight 72mm x 53mm x 43mm
Battery Pack 82mm x 51mm x 29mm
Headlight 72mm x 53mm x 43mm
Battery Pack 82mm x 51mm x 29mm
206g [With Batteries]
| ANSI |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| LUXEON LED HIGH | 250 LUMENS | 4650cd | 135m | 14h |
|
|
| LUXEON LED MED | 100 LUMENS | 2040cd | 90m | 30h |
|
|
| LUXEON LED LOW | 25 LUMENS | 470cd | 44m | 300h |
|
|
| RED ON | 7 LUMENS | 35cd | 12m | 110h |
|
|
| RED SOS FLASHING | NA | NA | NA | 110h |
|
|
| REAR LIGHT ON | NA | NA | NA | 250h |
|
|
| REAR LIGHT 2Hz FLASHING* | NA | NA | NA | 450h |
|
|
